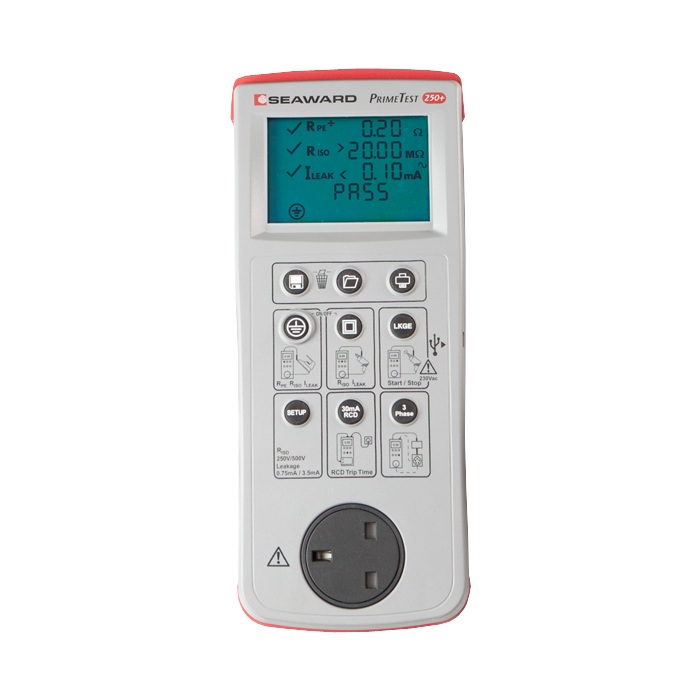

Seaward Primetest 250 Plus PAT Tester and Datalogger Software 403A910

Primestest 250 Plus Comes Supplied With:

• Datalogger software
• 0.5m extension adaptor
• Earth lead with probe and clip
• Mains lead
• 6 x AA batteries
• USB download lead
• Carry case
• Operating instructions
• 2-year warranty (subject to terms and conditions, available at www.seaward.co.uk/warranty24)

Overview:

Enabling simple, professional, and fast PAT testing, this versatile tester features all of the required tests of the IET 5th Edition Code of Practice and BS EN50699, along with a USB download. It is also fully compatible with the Test n Tag Pro serial printer for quick and easy label printing without any setup required – just plug and print.

Using Seaward’s free datalogger program and pressing a single download key allows test result data to be quickly and easily transferred from the PrimeTest 250+ to the PC at the press of a button.

Data is downloaded in a simple CSV spreadsheet format for your PAT records or alternatively, it can be imported directly into Seaward’s PATGuard 3 software for more enhanced record keeping, reporting, and certification.

Seaward’s unique ‘ZAP’ technology ensures that earth continuity measurements are accurate in situations where other testers struggle to provide reliable measurements, such as measuring through rust, limescale, and other surface contamination.

The PrimeTest Series Testers can be used with our free PATMobile App as part of a combined record-keeping and reporting solution. The PATMobile App works with the PrimeTest 250+ to enable the input and storage of test records alongside barcode scanning, wireless label printing, photo tagging, and mobile reporting.

Built-in Britain and used by 1,000’s of organisations every day.

Electrical Test Functions:

• Low current earth continuity test guaranteeing accurate measurement
• Insulation resistance at 250/500V
• IEC lead test
• Protective conductor current
• Touch current
• 3 Phase leakage current (requires adaptor)
• Alternative leakage current
• RCD test (30mA/150mA)
• Power socket test



Fast, Simple PAT Testing

With Seaward’s press-to-test technology, the PrimeTest 250+ is extremely simple to grasp. Its light weight and small size along with battery power mean it is highly portable. The PrimeTest 250+ offers a comprehensive suite of fast and accurate electrical safety tests to enable almost any workplace appliance to be tested, including accurate and reliable earth continuity tests, 3-phase appliances, and Residual Current Devices.

Plug & Print

The PrimeTest 250+ can be used in conjunction with the Test n Tag Pro serial printer to further speed up the process of testing and labelling. The Test n Tag Pro label rolls provide over 400 high-quality labels allowing you to produce professional, low-cost inspection and test labels at the press of a button.

Simple Data Management

PrimeTest 250+ has an internal memory capable of storing up to 999 appliance test records and the single key save allows records to be stored at the press of a button.

Transfer data via a USB cable directly to a PC using the supplied datalogger software. The data downloads in the industry standard CSV format and can be read directly into spreadsheets or other PC applications.

For those who require professional reports and certificates as well as complete data traceability and integrity, the downloaded data is also fully compatible with Seaward’s PATGuard 3 Elite software; which allows complete test records to be easily managed on a PC – offering total peace of mind and quicker, easier management of scheduling inspections and tests.

Accurate and Reliable Earth Continuity Testing

Some test instruments struggle to provide accurate and consistent earth continuity readings but thanks to a unique ‘zap circuit’ from Seaward, erratic earth continuity readings on those difficult-to-test appliances are a thing of the past.

Simply clip on and press to test. No more pressing or scraping with test probes or clips on chrome-plated kitchen appliances trying to obtain a satisfactory reading – and no more surface damage on the appliance under test. Go to www.seaward.co.uk/zap-circuit for more information

Which Seaward Primetest 250 Model?

The PrimeTest 250+ is compatible with a range of accessories that help to speed up the process of asset recognition, testing, and labelling.
