TPI 9080 Pro Vibration and Bearing Condition Analyser with Trending software

TPI 9080 Pro Vibration Analyser

The TPI 9080 is a simple, easy to use, low cost vibration analyzer & smart trend meter that records, analyzes and displays vibration signals at the push of a button.

In an endeavour to keep our customers best informed, please be aware that this item is on an extended lead time due to the effects of global component shortages and/or shipping delays caused by the pandemic.
You are welcome to order the item and we will confirm the latest status of it's delivery following receipt of your order. We would like to thank you for your patience and understanding while we wait for availability to resume some normality.
The latest ETA for this item is: April 2022>

Identify the vibration problem: unbalance, misalignment or looseness; in addition to the bearing condition. VibTrend standard software gives you greater ease of use and flexibility. Windows 7™ compatible.

Store analyse and report on all your vibration parameters in one place; up to 10 assets with 10 readings per asset standard; unlimited assets with 10 readings per asset with optional A9084 VibTrend Pro software.

• All information is just a click away. Color coded alarms highlight problems. Trend lines show problems before they happen.

• Overall machine and bearing conditions: vibration values are displayed with color coded alarm levels for ISO values and Bearing Damage (BOU).

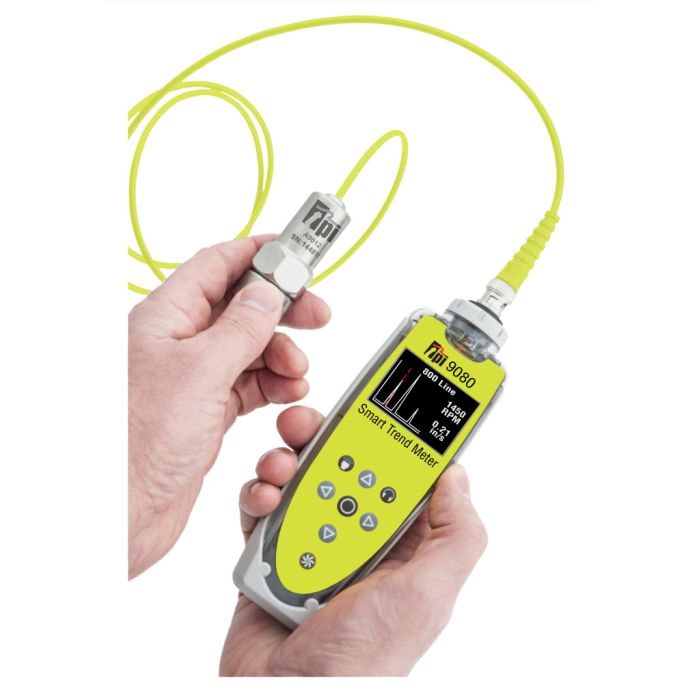

• Identify complex issues: 800-line spectrum with zoom and cursor.

• Identify the vibration problem: unbalance, misalignment or looseness in addition to the bearing condition.

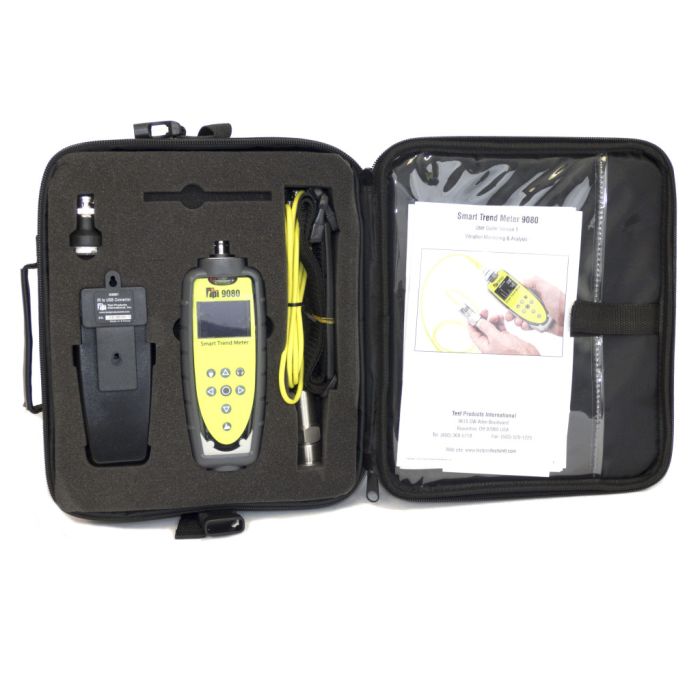

TPI 9080 Plus Vibration Analyser Comes Supplied With:

The system is designed to enable a user to take vibration measurements from assets (e.g. pumps, motors, fans and bearings) . The unit displays vibration frequency plots and allows vibration severity and bearing condition to be monitored.

Put the TPI 9080 to work:

• Commercial & Industrlal HVAC

• Food Processing

• Manufacturing

• Mining

• Packaging

• Petrochemical

• Pulp and Paper

• Power Plants

• Utilities

• Automotive

The 9080 Vibration Analyzer & Smart Trend Meter also has an optional strobe attachment for determining machine speed and optional Bluetooth connected headphones for listening to bearing noise.

• Find machine faults before they stop your machine

• Increase productivity and lower maintenance costs

• Industry approved ear defenders with built-in Bluetooth headphones are also available to let you listen to the bearing noise – or even listen to your phone!
