Martindale HPAT550 Rechargeable PAT Tester

Martindale HPAT550 Rechargeable PAT Tester

Product Code: MARHPAT550

Price
£318.00 ex. VAT £381.60 inc. VAT

Available In 3-7 Days


Add To Favourites
Detailed Description

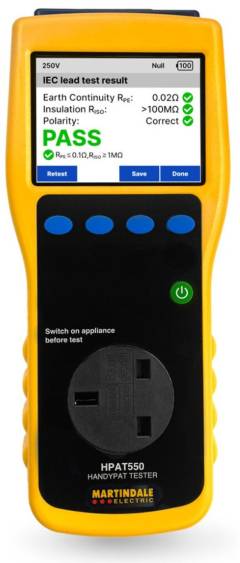

The HPAT550 is an easy-to-use hand-held PAT tester with a simple one-button test selection. The tester is powered by rechargeable batteries and is easily charged via the integral USB-C port

Its lightweight, portable design and the bright colour display make it ideal for testing in all locations. A single button press activates either a full Class I, Class II or lead test without any further interaction by the user. The display has clear PASS / FAIL indicators and shows all test results. Simple connection diagrams are also shown on the screen. HPAT550 is supplied with an extension lead adaptor, an earth bond probe with clip, a USB-C to USB-A cable for charging and carry case with a separate pocket for accessories.

The HPAT Series of handheld PAT testers can be used for testing all types of portable appliances. They are designed for ease of use with one-button automatic testing while the small, lightweight design gives ultimate portability. Both models feature a bright, high-quality colour display for ease of use and can be charged via the integral USB-C charging port. The 250V insulation test option is ideal for surge-protected devices.

HPAT550 Comes Supplied With:

  • TL67 earth bond probe
  • EX322 IEC adaptor lead
  • TC57 carry case
  • USB-A to USB-C cable
  • TL178 null pin on keyring
  • Instruction manual and verification certificate.

Key features:

  • Compact, portable design

  • High-quality colour display with optional help screens

  • Clear and simple PASS / FAIL indication with measured values

  • Automatic testing Class I, Class II & IEC power lead tests

  • IT safe 200mA earth bond test

  • Selectable 250V or 500V insulation test

  • USB-C rechargeable, fast charge support and power save mode

Premium features HPAT650 (see listing):

  • Memory storage with on-screen recall
  • Adjustable test limits for long mains leads
  • Single and sequenced test execution mode
  • Substitute leakage test at reduced voltage for checking earth leakage

Key Specification:

Earth continuity:  Test current: 200mA DC Range: 0-19.99Ω Resolution: 0.01Ω Accuracy: ± (5% rdg + 2 dgt) Fixed pass limits: ≤ 0.10Ω/≤ 0.20Ω

Insulation:  Test Voltage: 250V/500V DC selectable Test current: 1.5mA

Insulation:  Test Voltage: 250V/500V DC selectable

Warranty:  2 Years

*Full product specification can be found in the Product Downloads tab above.

Product Comparison

HPAT550 HPAT650
Test values displayed ✔ ✔
Selectable limits ✔
Test mode Auto Auto / Manual
Lead test ✔ ✔
Earth continuity test current 200mA 200mA
Insulation test voltage 250 / 500V 250 / 500V
110V test with accessory with accessory
Memory 100 results for on screen recall
Supply Rechargeable via USB-C Rechargeable via USB-C
