TSI Airflow Capture Hood Kit AFL72852201

TSI Airflow Capture Hood Kit AFL72852201

Product Code: TSIAFL2201

Price
£165.00 ex. VAT £198.00 inc. VAT

In Stock


Add To Favourites
Detailed Description

Aircone Flow Hoods are a fast and accurate method of maximizing the usefulness of your 4 in. (100 mm) rotating vane anemometers. For a modest investment, you can double the capability of your rotating vane, turning it into an air volume flow balancing tool.

The kit comprises of two cones, round and oblong to suit a variety of applications.

Key Features:

  • Kit comes with a rectangular and circular cone (ANEMOMETER NOT INCLUDED)
  • Measures volumetric flow at grilles, diffusers and registers
  • Reads air volume quickly and accurately
  • Excellent choice for small grilles
  • Works with Alnor LCA301 and LCA501 rotating vanes

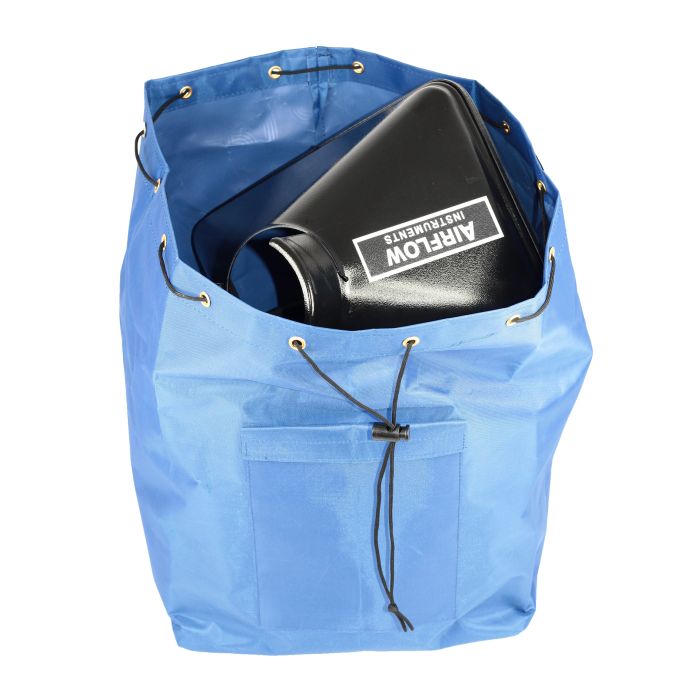

  • Kit Bag included

Specifications:

  • Range (with RVA801): 0 to 210 cfm (0 to 0.1 m3/s)
  • Rectangular Hood size:11.2 in. x 9.2 in. (285 mm x 235 mm)
  • Round Hood size: 7.1 in. (180 mm) diameter
  • Weight (includes case): 2.4 lbs (1.1 kg)

The TSI LCA301 vane anemometer is available here.

The TSI LCA501 vane anemometer is available here.



TSI LCA301 & LCA501 Technical Specification
Velocity
Range 0.25 to 30 m/s (50 to 6,000 ft/min)
Accuracy ±1.0% of reading ±0.02 m/s (±4 ft/min)
Resolution 0.01 m/s (1 ft/min)
Duct Size
Range
LCA301 0.00399 - 90 m2  (0.043 - 900 ft2)
LCA501 0 - 46.45 m2    (0 - 500 ft2)
Volumetric Flow Rate
Range Actual range is a function of velocity and duct area
Resolution
LCA301 <100; 0.1 l/s, 0.1 m3/hr, 0.1 ft3/min
LCA501 <100; 0.01 l/s, 0.01 m3/hr, 0.01 ft3/min
Temperature
Range 5 to 45°C (40 to 113°F)
Accuracy ±1.0°C (±2.0°F) Resolution LCA301   0.1°C (1°F) Resolution LCA501   0.1°C (0.1°F)
Instrument Temperature Range
Operating 5 to 45°C (40 to 113°F)
Storage -20 to 60°C (-4 to 140°F)
Data Storage Capabilities (LCA501 only)
Range 12,700+ samples and 100 test IDs
Logging Interval (LCA501 Only)
Range From 1 second to 1 hour

Time Constant (LCA501 Only)
User Selectable
External Meter Dimensions
LCA301 1.2 cm x 28 cm x 6.5 cm (4.5 in. x 11 in. x 2.6 in.)
LCA501 8.4 cm x 17.8 cm x 4.4 cm (3.3 in. x 7 in. x 1.8 in.)
Meter Weight with Batteries
LCA301 329 g (11.6 oz.)
LCA501 270 g (9.6 oz.)
Power Requirements
LCA301 Four AA-size batteries or AC adapter
LCA501 9-volt battery
Specifications subject to change without notice.
TSI and the TSI Logo are registered trademarks, and Airflow, the Airflow logo and LogDat2 are trademarks of TSI Incorporated.
