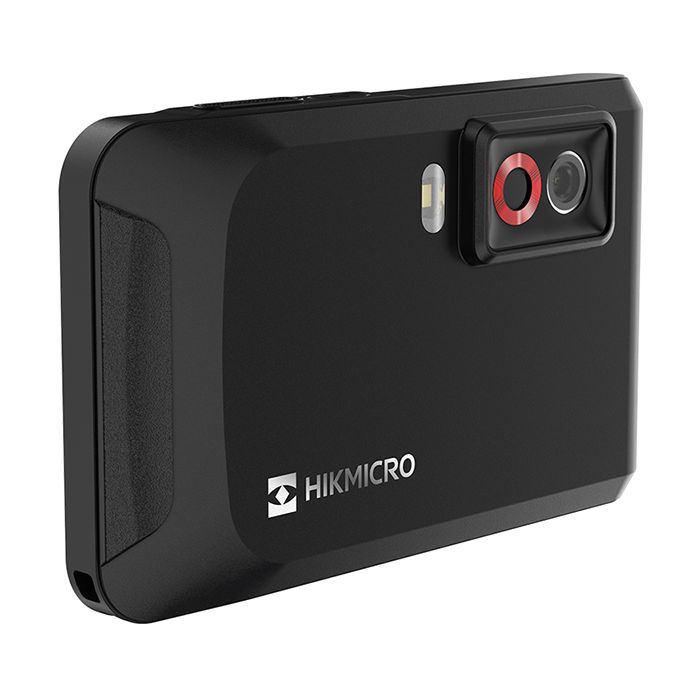

HIKMICRO Pocket2 Compact Thermal Camera with Wi-Fi
Product Code: HIKPOCKET2
Available In 3-7 Days
Add To Favourites
Detailed Description
The HIKMICRO Pocket Series is equipped with a high-resolution HIKMICRO VOx 256 x 192 (49,152 pixels) detector, a high-resolution8 MP optical lens, and a 3.5”LCD touch screen. It helps you locate faults faster and more efficiently, and measure temperatures more accurately.
The wide temperature range of -20 °C to 400 °C is ideal for Building Inspections, HVAC, Electrical, and Mechanical Equipment Maintenance. The 25 Hz frame rate allows for smooth operation and the Wi-Fi function allows the Pocket to share images in real time. The Pocket Series puts a powerful thermography tool in your pocket so it’s always there when you need it.
*Important Calibration Information:
This instrument comes complete with the manufacturer’s calibration certificate. Please be aware that these certificates are generic and may also be time-lapsed.
If you would prefer a personalised full traceable calibration certificate applied to the equipment before dispatch, then please select this option from the drop-down menu above, an additional calibration charge will apply.
Pocket2 Comes Supplied With:
- Thermal Imager x 1
- Pouch x 1
- Wrist Strap x 1
- USB Cable x 1
- Power Supply x 1
- Quick Start Guide x 1
- Calibration Certificate x 1
Key features:
Multiple Level & Span Modes
Three Level & Span modes (manual, automatic, and 1-Tap) help you instantly improve image contrast and highlight
potential problems.
Faster Troubleshooting
Built-in speakers and flash light give the operator audio and visual alerts to high temperatures. Full-screen measurement using different user presets checks everywhere instantly.
Portable Pocket-sized Design
Easy to carry and hold. It fits perfectly in your pocket and tool bag.
Rugged & Durable Design
IP54 is rated for protection against water and dust. Featuring 2-meter (6.6ft) drop protection, suitable for industrial use.
LED Flashlight
The LED flashlight allows you to work safely in dim or dark environments.
On-camera Recording
Built-in 16GB internal memory provides onboard recording and playback.
Software:
Connect (Wi-Fi or Hotspot) to the HIKMICRO Viewer App for transmitting pictures from the camera to a
mobile phone. Analyze, share images, and generate simple reports in real-time on-site. Use HIKMICRO
Analyzer PC software to provide customers with professional reports with images documenting
problems and repairs.
| Thermal Module |
Image Sensor | Vanadium Oxide Uncooled Focal Plane Arrays |
| IR Resolution | 256 x 192 (49,152 pixels) | |
| NETD | < 0.04°C (40 mK) at 25°C (77°F) Ambient Temperature, F#=1.0 | |
| Focal Length | 3.5 mm | |
| FOV (Field of View) | 50.0 °H × 37.2 °V | |
| Image Frequency | 25 Hz | |
| Focus | Fixed | |
| IFOV (Spatial Resolution) | 3.43 mrad | |
| Optical Module |
Picture Resolution | Configurable: 2 MP, 5 MP, 8 MP |
| Image Display |
Display | 640 × 480 Resolution, 3.5’’ LCD Touch Screen |
| Colour Palettes | 7: White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Rain | |
| Image Modes | Thermal/Optical/Fusion/PIP | |
| Measurement and Analysis |
Object Temperature Range | -20 °C to 400 °C ( -4 °F to 752 °F ) |
| Accuracy | Max (±2°C/3.6°F, ±2%), for ambient temperature 15°C to 35°C (59°F to 95°F) and object temperature above 0°C (32°F) |
|
| Measurement Presets | Center Spot, Hot Spot, Cold Spot, Off | |
| High-Temperature Alarm | Audible/visual alarm of above temperature threshold, User-defined temperature threshold |
|
| Storage | Storage Media | EMMC (16 GB) |
| Image Storage Capacity | Approx. 60,000 Images | |
| Image File Format | Radiometric.JPEG with Measurement Data Included | |
| Text Note | Max. 200 Characters | |
| Video Storage Capacity | Approx. 10 h | |
| Video File Format | Standard MP4 Non-radiometric video | |
| Functions | LED Light | Yes |
| Microphone | Yes | |
| Buzzer | Yes | |
| Wi-Fi | 802.11 b/g/n (2.4 GHz, 5 GHz) | |
| Bluetooth | Bluetooth 4.2 | |
| Connect with APP | Yes, HIKMICRO Viewer | |
| Level/Span | Auto/Manual/1-Tap Touch Screen | |
| Power System | Battery Operating Time | 4 Hours Continuous Running |
| General | Menu Language | 21 Languages |
| Protection Level | IP54 | |
| Drop Test Height | 2 m (6.56 ft) | |
| Weight | Approx. 218 g (0.48 lb) |
