Drummond MTL20PD-S Test Lamp and Proving Device Kit
Product Code: MARMTL20PD-S
Available In 3-7 Days
Add To Favourites
Detailed Description
600V twin button test lamp with proving device

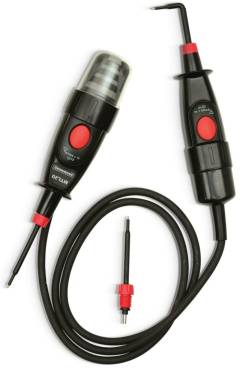

Martindale’s MTL20PD-S contains the Drummond MTL20 test lamp and PD440S proving device supplied with a tailor-made carry case made from heavy denier nylon. It has a clear window for access to test points on the proving unit without the need to remove it from the case.
The MTL20 test lamp has a safe voltage indication from 50V – 500V AC / DC. Simultaneous depression of two buttons on the probe and instrument enables the unit to draw a high current to help identify phantom voltages.
The PD440S AC proving device proves the operation of voltage indicators, multimeters and test lamps at 440V
The kit fully meets the requirements of GS38 and proving dead procedures.
Key Features:
- Simple with no batteries or ranges
- High intensity long life LEDs
- 3 interchangeable GS38 probes
- Double insulated cable with contrasting core to identify damage
- Additional features MTL20:
- Twin test buttons eliminate phantom voltages PD440S
- Ideal for proving low and high impedance voltage indicators, test lamps and two pole testers
- Tough low profile design
- Long battery life with low battery indicator and auto power off
*Key Specification:
Voltage range: 500VAC, 750DC
LED Indication: ± 50, 100, 230, 400V AC/DC
Range detection: Automatic
Response time: <0.1s
Frequency range: DC, 40 – 65Hz
Test current: <3.5mA, with switch depressed 28mA @ 240 VAC, 60mA @ 500V AC
Temprange: -10°C..+55°C/at max. 85% RH
Proving Unit: 440V - PD440S
Complies with: BS EN 61243-3 GS38 CAT IV 600 V Class II double insulation
Warranty 2 Years
*Full product specification can be found in the Product Downloads tab above.
