We have therefore developed a versatile technical solution for inclusive testing of a wide variety of electric vehicle supply equipment (EVSE). The A 1632 eMobility Analyser offers both electrical safety and functional testing of EVSE, i.e. checking if the charging station/equipment can actually charge a vehicle and do so in a proper (not only safe) and efficient manner. An added feature is the diagnostic functionality of communication monitoring between the charging station and (simulated) electric vehicle for a more comprehensive analysis of any potential issues. Supported (both safety and functional testing/analysis) are charging stations with type 1 and type 2 charging connectors and mode 2 and mode 3 charging cables.

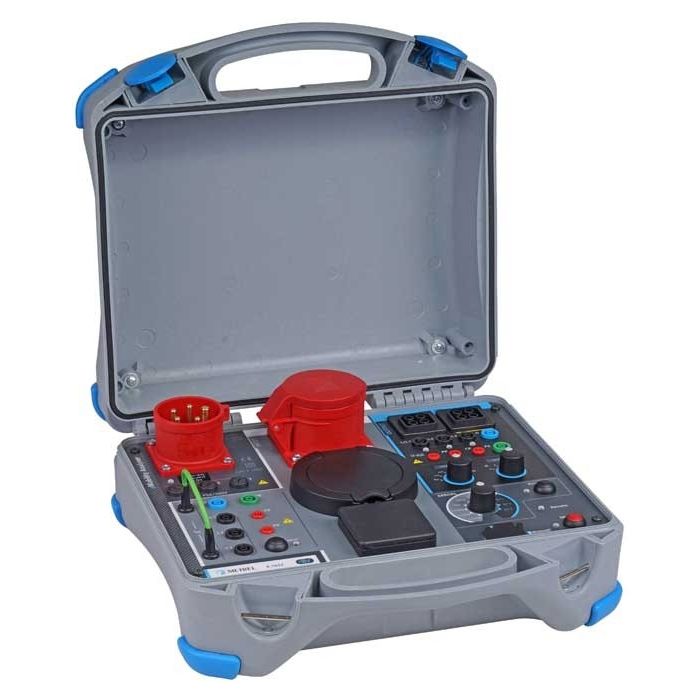

The A 1632 eMobility Analyser is a special accessory designed for diagnostic testing of Electric Vehicle Supply Equipment (EVSE) together with supported METREL installation testers. It supports verification of electrical safety and functional testing of Type 1 and/or Type 2 EVSE as well as testing of Mode 2 and Mode 3 electrical vehicle (EV) charging cables and communication monitoring between the charging station and the EV during charging. Fully supported professional station-based and cable-based report creation with MESM software.
Applications:
Special Installations / Locations
- Electric vehicle charging stations
Standards Applied:
- IEC/EN 61851
- IEC/EN 61557 series
- IEC/EN 62133
Measuring functions:
- Functional testing of EVSE via simulation of electrical vehicle’s CP and PP circuits.
- Diagnostic testing of EVSE via simulation of errors on CP circuit (output side).
- Electrical safety testing of EVSE.
- Functional testing of Mode 2 EV cables via simulation of electrical vehicle’s CP and PP circuits.
- Diagnostic testing of Mode 2 EV cables via simulation of errors on CP circuit (output side) and mains (input side).
- Electrical safety testing of Mode 2 EV cables with installed IC-CPD protection.
- Electrical safety testing of Mode 3 EV cables.
- Accessible inputs/outputs for connection of safety testers.
- Bluetooth communication with Metrel safety testers.
| Metrel A 1632 eMobility Analyser EVSE | |||
| Surement functions | Measuring range | Resolution | Accuracy |
| Nominal system voltage range | 100 V AC ... 440 V AC | 1 V | ±2 % of reading + 2 dig) |
| Nominal frequency range | 0 Hz, 14 Hz ... 500 Hz | ||
| Phase rotation | 1.2.3 or 3.2.1 | ||
| Voltage UCP+, UCP- | -19.99 V ... 19.99 V | 1 V | ±(2 % of reading + 2 dig) |
| Frequency | 500 ... 1500 Hz | 0.1 Hz | ±1 % of reading |
| Duty cycle | 0.1 ... 99.9 % | 0.1 % | ±10 dig |
| Ievse | 0.0 … 99.9 A | 0.1 A | Calculated value |
| Tof | 0 ... 399 ms | 1 ms | ±(1 % of reading + 5 dig) |
| Simulation functions | State | Misc. | |
| PP simulation | n.c | > 300 kΩ | |
| 13 A | 1.5 kΩ ± 1.5 % | ||
| 20 A | 680 Ω ± 1.5 % | ||
| 32 A | 220 Ω ± 1.5 % | ||
| 63 A | 100 Ω ± 1.5 % | ||
| 80 A | 56 Ω ± 1.5 % | ||
| CP simulation | A | > 300 kΩ | |
| B | 2.74 kΩ ± 1.5 % | ||
| C | 882 Ω ± 1.5 % | ||
| D | 246 Ω ± 1.5 % | ||
| Diag. functions | Error | Misc | |
| System state | A1 | no EV connected | |
| A2 | no EV connected / PWM | ||
| B1 | EV connected | ||
| B2 | EV connected / PWM | ||
| C1 | EV charged | ||
| C2 | EV charged / PWM | ||
| D1 | EV charged and ventilation on | ||
| D2 | EV charged and ventilation on / PWM | ||
| E | Error | ||
| F | Failure | ||
| Invalid | CP signal can’t be classified | ||
| Error functions | State | Misc. | |
| Uinput fault | L/L1op | L/L1 conductor open | |
| L/L2op | L/L2 conductor open | ||
| L/L3op | L/L3 conductor open | ||
| Nop | N conductor open | ||
| PEop | PE conductor open | ||
| L<>PE | L/L1 and PE conductors crossed | ||
| Uext (PE) | External voltage on PE (on input side) | ||
| Uoutput fault | Diode short/Error 1 | CP diode shorted | |
| CP short/Error 2 | CP-PE shorted | ||
| PE open/Error 3 | PE opened | ||
| General Specifications | |||
| Battery power supply | 7.2 V DC (4.4 Ah Li-ion) | ||
| Battery charging time | typically 4 h (deep discharge) | ||
| Mains power supply | 115 V ~ ± 10 % | ||
| 230 V ~ ± 10 % | |||
| 230 V / 400 V 3~ ± 10 % | |||
| 50 Hz - 60 Hz, 60 VA | |||
| Protection category | 300 V CAT II | ||
| Measuring category | 300 V CAT II | ||
| Degree of protection | IP 65 (case closed) | ||
| IP 40 (case open) | |||
| IP 20 (mains test socket) | |||
| Dimensions (W x H x D) | 36 cm x 16 cm x 33 cm | ||
| Working temperature range | -10 °C … 50 °C | ||
| Maximum relative humidity | 90 %RH (0 °C … 40 °C), non-condensing | ||
| Working nominal altitude | up to 3000 m | ||
| Bluetooth module | Class 2 | ||
