Megger MFT-X1 Multifunction Tester 1012-223

Megger MFT-X1 Multifunction Tester 1012-223

Product Code: MEG1012-223

Price
£1325.00 ex. VAT £1590.00 inc. VAT

Available In 3-7 Days


Add To Favourites
Detailed Description

Key Features:

  • True Loop™ test with patented Confidence Meter™
  • CertSuite™ compatible Bluetooth® result transfer
  • Next generation 2-wire and 3-wire non-trip loop testing
  • User upgradeable operating system
  • High resolution 0.001Ω loop test
  • Automatic volt-drop measurement
  • Stabilised insulation test voltage
  • Configurable RCD and EV auto-sequence tests
  • Fast switch rechargeable plug-in battery pack
  • Full colour TFT bonded display
  • Re-designed lead set and carry case solution
  • IP54 operational housing

*Important Calibration Information:
This instrument comes complete with the manufacturer’s calibration certificate. Please be aware that these certificates are generic and may also be time-lapsed. If you would prefer a personalised full traceable calibration certificate applied to the equipment before dispatch, then please select this option from the drop-down menu above, an additional calibration charge will apply.

The UK-designed and built MFT-X1, introduces the first generation of platform-based Multifunction electrical installation testers to the Megger MFT range. Rated to CATIV 300 V, the MFT-X1 is designed for use on all single or 3-phase domestic, commercial and industrial electrical installations.
The range of individual tests allow the user to complete all the electrical commissioning, routine maintenance and reporting/certification requirements for an installation, as well as aid detailed fault diagnostics.

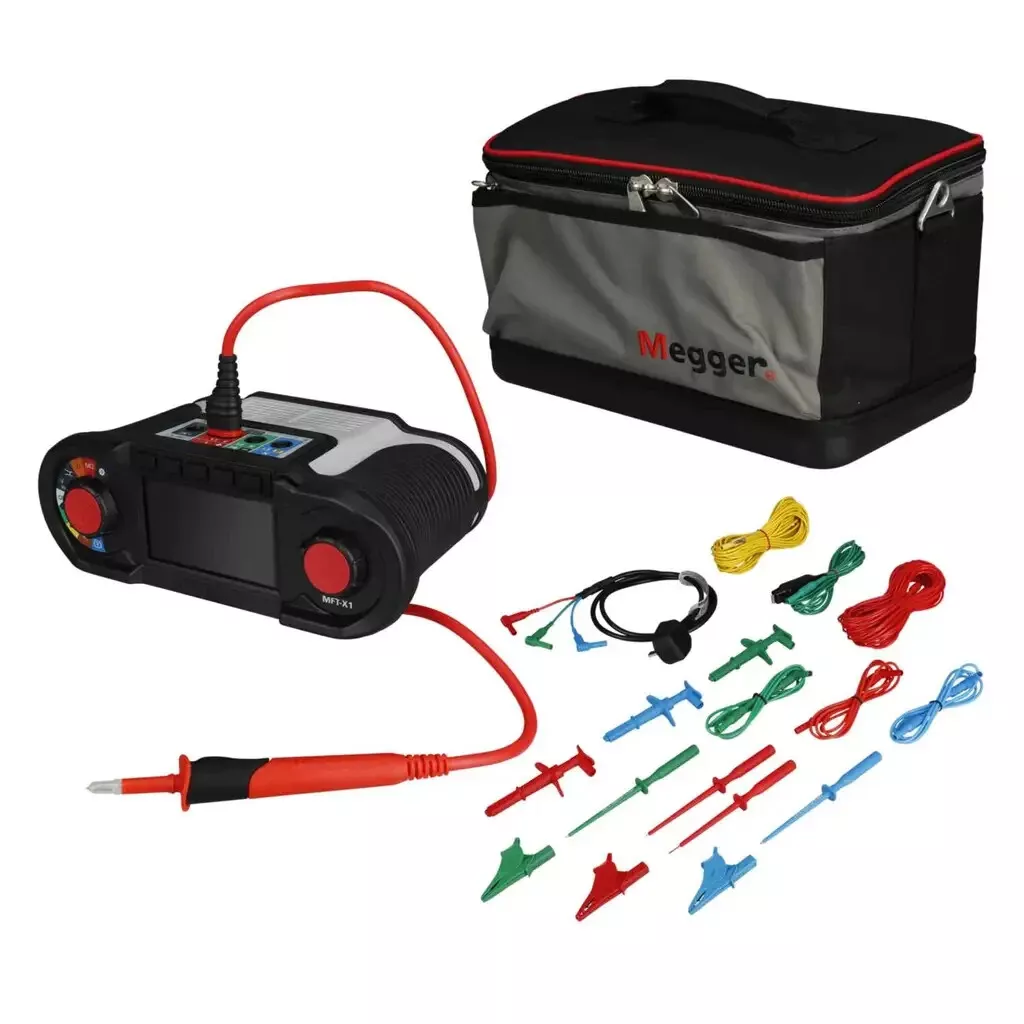

Megger MFT-X1 Comes Supplied With:

  • Switched test probe SP5
  • Red test lead, probes, clips and grabbers
  • Blue test lead, probe, clips and grabbers
  • Green test lead, probe, clips and grabbers
  • Li-ION battery 4400 mAh
  • Li-ION battery charge
  • SIA10 MAINS socket interface adaptor UK
  • Neck strap
  • Multipurpose hard base carry case
  • Quick start guide
  • Calibration certificate


MFT-X1_Megger



True Loop™

True Loop™ impedance testing is now a standard feature on the MFT-X1. The latest 3-wire non-trip loop testing technology, incorporated with the patented Confidence Meter™, offers an unmatched, reliable, accurate, stable and repeatable loop test solution to the user, allowing testing in the most hostile high noise conditions or close to the source of supply.
The technology also removes the risk of RCD uplift whilst reducing typical test times, even on circuits protected by 6 mA or 10 mA protective devices.


Patented Confidence Meter™ technology

All loop impedance ranges are now supported by the Megger patented Confidence Meter™ technology, reducing typical test times for non-trip loop testing to around 7 seconds on quiet circuits, and providing optimised test times for loop impedance testing in
difficult noisy supplies. The Confidence Meter™ shows the progress of the loop measurement and indicates the presence of noise on the circuit, removing erroneous values to give a stable and consistent result.


CertSuite™ compatibility

The MFT-X1 is the first fully integrated instrument for use on the CertSuite™ software platform. Test results can be tagged in the instrument and transferred directly to any test certificate or report open on an IOS® or Android® mobile device running the CertSuite™ App. Professional certificates and reports can be completed on-site by multiple users with the confidence the data is protected by the cloud-based application. CertSuite is available on a monthly or yearly subscription.


High-resolution loop impedance testing

The MFT-X1 now includes a high resolution, high current, 2-wire loop impedance test that, with the integration of the Confidence Meter™, provides accurate measurements down to 0.001Ω resolution, with PFC/PSCC current calculation up to 50 kA.

RCD Configurator

RCD testing can now be optimised with the RCD configurator, allowing the user to select only those elements of an RCD test required to be completed in the auto-RCD test mode.


EV Charge point testing

Suitable for both EV charger installation testing with either RCD Type B or RDC protected charge points.
The MFT-X1 in conjunction with the Megger EVCA adaptor can test all known EV chargers for installation or maintenance.


Stabilised insulation test voltage

For the first time in any multifunction tester, the MFT-X1 incorporates a stabilised insulation test voltage, ensuring output voltage is accurate to within +2% +2 digits. This compares to the industry standard of +20% and so
provides a more accurate test voltage without the risk of over-voltage damage to circuits or sensitive components.


Current measurement

The MFT-X1 uses current clamps for current measurement using the optional Megger MCC1010 current clamp for measurement of AC currents from 1 mA to 1000 A.


Operating system upgrades

A user upgradable operating system - using a standard microSD card - helps future-proofing the MFT-X1 against changing regulations or testing requirements.


Display and user interface

The user interface utilises the flexibility of the high contrast 480 x 272 colour, TFT bonded display, with a monochrome black on white mode designed specifically for use in difficult lighting conditions.
Enhancing the colour-coded test selection rotary dial, range selection is now replicated on the instrument screen, ensuring easy use in poor lighting environments. Hot keys for second-level functions are clearly shown across the top of each screen and the second control dial provides users with a further quick selection option of any highlighted feature, even if wearing protective gloves.
Relevant information is clearly shown on the display, both before and after each test, in full colour, and includes the Confidence Meter™ progress bar, RCD ramp test progress as well as the insulation and continuity measurement bar graph.
The new Voltage Widget, displays the L-N, L-E and N-E voltages.


Always on with Modula battery technology

The Megger MFT-X1 can be used with either the Megger Li-ION battery pack, or the AA NiMH or Alkaline battery technologies.
The unique battery pack solution enables the rechargeable 4 Ahr Li-ION pack to be swapped with the AA carrier module, providing the most flexible and fastest battery change solution in the industry.
A smart fuel tank chip technology optimises battery status accuracy on the Li-ION pack.


Graphical assistance

The instrument has context help to provide graphical circuit connection guidance for each of the measurements.


Accessories

The MFT-X1 is shipped in a rugged, weather-proof carry case offering outstanding protection and flexible storage.
Also included is a complete set of test leads to meet the wide range of connection challenges in modern electrical systems.
Megger MFT-X1 Multifunction Tester Technical Specification
Voltage Measurement
Voltage range 0.001 V to 2 V (mV range) 2 V to 600 V (V range), 1000 V DC (on-CAT rated circuits)
Voltage type Trms, AC, DC
Phase sequence Automatic phase sequence testing on detection of valid three phase supplies
Current Measurement (non-contact)
AC Trms Using optional accessories: MCC1010 current clamp
Measurement Range MCC1010: 1 mA to 300 A
Continuity/Resistance
Measurement range Digital display 0.01 Ω to 999 kΩ Auto-ranging
Measurement Range Analogue arc 0 Ω to 1 MΩ log scale
Test voltage 4 V DC to 5 V DC
Test current (Nominal) >200 mA 0 Ω >< 2 Ω
10 mA
Auto reduction on high resistance (actual current reported in display)
Test polarities Forward polarity
Buzzer resistance range > 0.01 Ω < 2 kΩ
Buzzer threshold 0.3, 0.5, 1, 2, 3, 4, 5, 10, 20, 30, 40, 50, 100, 200 Ω
Insulation Testing
Measurement range Digital display 0.001 MΩ to 999 MΩ Auto-ranging
Measurement range Analogue arc 0.001 MΩ to >1000 MΩ log scale
Insulation test voltages 50 V DC to 1000 V DC + Variable 50 V to 999 V
Test current 1 mA to 2 mA
Stabilised output voltage Output test voltage stabilised to -0% +2% +2 V
Loop Impedance Testing
2 Wire – all modes
Test types Mode 1: Non-Trip
Mode 2: High current
Mode 3: High resolution
Resolution Non-Trip: 0.01 Ω
High current: 0.01 Ω
High resolution: 0.001 Ω
Voltage range Non-trip: 48 V AC to 280 V AC
High current: 48 V AC to 550V AC
High resolution: 48 V AC to 550 V AC
Frequency range 45 Hz to 65 Hz (all modes)
Phases Non-trip: Single phase
High current: Three phase
High resolution: Three phase
3 wire - non-trip
Test types RCD (non-trip)
RCD EV (non-trip on 6mA EV RDCs)
Resolution 0.01 Ω
Voltage range 48 V AC to 280 V
Frequency range 45 Hz to 65 Hz
Phases Single phase
Volt Drop
Volt drop calculation Requires Zref (Ze) and circuit current (I-vdrop)
Accuracy Dependent on loop impedance accuracy
RCD Testing
RCD types supported Type AC, A, B, AC(S), A(S), B(S)
Auto RCD sequence 1/2x I∆n, 1x I∆n, 2x I∆n, 5x I∆n, Ramp, 0º/180º
(customer configurable)
Ramp testing 10 mA to 1000 mA
RDC testing 6 mA RDC
Fault (Touch) voltage 0 V to 253 V
Earth Testing
2 wire 2 wire earth resistance test
