Fluke FEV350/KIT EV Charging Station Analyzer 5602653

Complete with Type 2 adapter and a 1664FC multifunction tester.

Test the safety and functionality of AC electrical vehicle charging stations with the all-in-one tool that is safe, portable, and easy to use.

The FEV350 is a complete solution for safety and performance testing of AC EV charging stations with Type 2 or Type 1 connectors. Designed for technicians required to perform and document multiple tests quickly and efficiently without carrying multiple tools.
The solution includes TruTest™ EV Charging software module for documentation and reporting. The solution performs these measurements: PE (protective) earth pre-test, visual inspection, 30 mA RCD + 6 mA RDC-DD trip test, nominal voltage + phase sequence, auto control pilot (CP) with waveform analysis, proximity pilot, and error testing.

The supporting measurements are: earth bond, insulation, and loop/line impedance, available with Fluke’s compatible multifunction installation testers for installation certification/inspections via wireless Bluetooth connection, wiring configuration diagrams, and info screens for seamless integration with TruTest software for report generation.
The Fluke FEV350 provides predetermined test plans and pass/fail indications on measurement results to simplify analysis and time spent testing. The FEV350 EV Charging Station Analyzer is designed in accordance with IEC/EN 61851-1 and IEC/HD 60364-7-722.

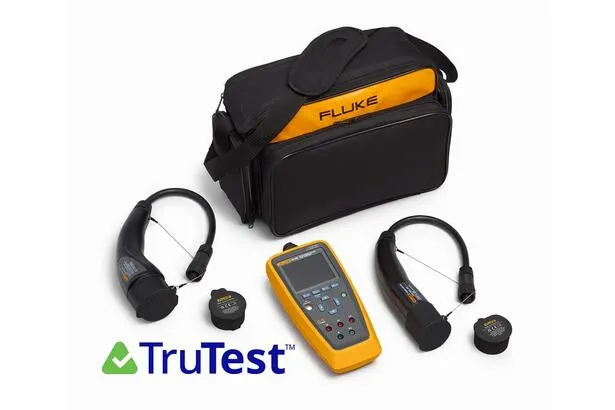

Available in various kit options:

FEV350/TY2
FEV350/TY2 PRO
FEV350 TY2/TY1
FEV350 TY2/TY1 PRO
FEV350/KIT (This item)

Main Applications:

• Safety testing of charging stations
• Functional testing of charging stations
• Troubleshooting/repair of charging stations

Electricians that install or perform maintenance of EV Charging stations (level 1, 2 or Mode 3 – residential and commercial) (O&M)
Troubleshoots and performs critical maintenance testing of AC EVSEs. Works/acts as a test and measurement tool without the need for multimeters or scope meters. Compatible with the Fluke 1664 FC multifunction tester for full installation certification.

• Provides critical protective ground testing of the station.
• Comprehensive EVSE test tool with UI to support full installation certification and advanced functionality of CP waveform analysis.
• Only tool to support all AC EVSE connectors available.
• IEC-61851 / IEC-60364 Compliant
• TYPE 2 Connector works with stations with a socket outlet or connector (unique)
• FEV350 performs 30 mA and 6 mA RCD and RDC-DD measurements directly on analyzer.

Features and Functions:

• Available measurements:
  PE (protective) earth pre-test to ensure no dangerous voltage is present
  Visual inspection
  30 mA RCD + 6 mA RDC-DD trip test
  Nominal voltage + phase sequence
  Auto control pilot (CP) with waveform analysis
  Proximity pilot
  Error testing
• Supported measurements:
  Earth bond
  Insulation
  Loop/line impedance
• Compatible with EV Charging stations with Type 2 and Type 1 sockets/connectors
• Compatible with Fluke multifunction installation testers for installation
  certification/inspections via wireless Bluetooth connection
• Supported through TruTest™ software via EVSE module for documentation and
  reporting.


Which Model is Right for You?

Fluke TruTest™ Software

Data Management and Reporting Software with EVSE Module
(Full version NOT included with this package)

Spend less time processing test results and compiling reports
The reporting necessary to close out projects can be challenging and time-consuming. Cover all your certification and documentation needs through the modern, fast, and reliable software platform ofTruTest™.

TruTest™ allows for EV Charging asset management, data storage, and reporting on a single
platform. Whether you are analyzing Control Pilot waveforms or safety testing the system, proper data management is critical for producing easy-to-understand reports for clients. Compatible with the Fluke FEV350 EV Charging Analyzer, TruTest™ Software allows you to quickly import measurement results directly from your EV charging analyzer to the computer, organize and analyze the data, compare individual asset data against previous measurements imported and provide a comprehensive and visual client report.

• Easily manage measurement data from EVSE inspections
• Quickly create inspections and reports
• Control Pilot waveform analysis with easy pass/fail visuals
• Compare site data to previous site data to see changes over time
• Quickly access the latest firmware to update your FEV350
• A free 60-day demo version of TruTest™ is available

Fluke 1664 FC Multifunction Tester

The Fluke 1664 Multifunction Installation Tester is a great way to test for local regulations in a quick and efficient manner. Whether you're looking to share results in real time or protect your appliances, the Fluke 1664 Multifunction Installation Tester has you covered.

Out of the Fluke's new multifunction testers (1662, 1663, 1664), the 1664 is definitely equipped with the most new features. With the AutoTest function, you can reduce your testing time by up to 40%. Not to mention the improved accuracy of your results. The Insulation Pretest function has also been designed to alert you of any mistakes, stopping the test and providing you with a visual warning. This is currently the only tester on the market with this advanced safety features.

Includes:

• 6x AA (IEC LR6) cell batteries
• C1600 hard carrying case
• Zero adapter
• Heavy-duty mains cord
• STD standard test lead set
• C1600 hard carrying case
• Padded carrying and waist strap
• Quick reference guide
• TP165X remote control probe and lead
• User's manual on CD-ROM
• FREE Traceable Calibration Certificate



The versatility of the Fluke Multifunction Tester

Insulation-continuity test: our installation tester does the job.
Fluke installation testers can be used to perform an insulation-continuity test, which is designed to diagnose and prevent the breakdown of the insulation in various parts of the electrical system such as wires, transformers and motors. The quality of insulation is critical to assure proper, uninterrupted and safe functioning of electrical circuits.

Checking RCD devices with a Fluke multifunction tester.
Our versatile installation testers can also check the proper functioning of residual-current devices (RCDs). RCDs are designed to disconnect quickly to mitigate the harm caused by electric shock and to avoid current leaks that may lead to fire and other dangerous situations. Our installation testers assure that RCDs can properly perform this important task.

The perfect loop testing tool: a Fluke installation tester.
Loop testing is a quick, convenient, and highly specific method of evaluating an electrical circuit for its ability to engage protective devices (circuit breakers, fuses, RCDs). A ground loop determines the effectiveness of protective devices.

Resistance measurement of grounding systems.
The electrical installation testing abilities of the Fluke installation tester also include verification tests to ensure that a system's resistance is low enough to provide protection to people, equipment and structures. A properly functioning grounding system is a critical safety feature of an electrical system.

Protect the installation, avoid costly mistakes.

The Fluke 1664 FC Installation Tester is the only Installation with "Insulation PreTest," which warns you about potentially serious and costly mistakes. If the tester detects that an appliance is connected to the system under test, it will stop the insulation test and provide a visual warning. This helps eliminate accidental damage to peripheral equipment and keeps your customers happy.

Fluke Connect and FlukeCloud™ Storage:
Share from anywhere.

Stay on the same page even when you and your team are in different places. Fluke Connect allows your 1664 FC Installation Tester to send test results to your smartphone so you can connect and collaborate with others. It's the fastest way to let your team see what you see, helping you get approvals without leaving the field.

Retrieve stored results from anywhere

FlukeCloud™ storage allows you to retrieve stored results whether you are in the office or in the field to make decisions in real-time. Plus you can import the data into Fluke DMS to process and generate certificates. Plus you get world-class data protection. Safe. Secure. Fast. More accurate. All from the power of Fluke Connect.

*A more detailed technical breakdown is available in our resources tab above.
