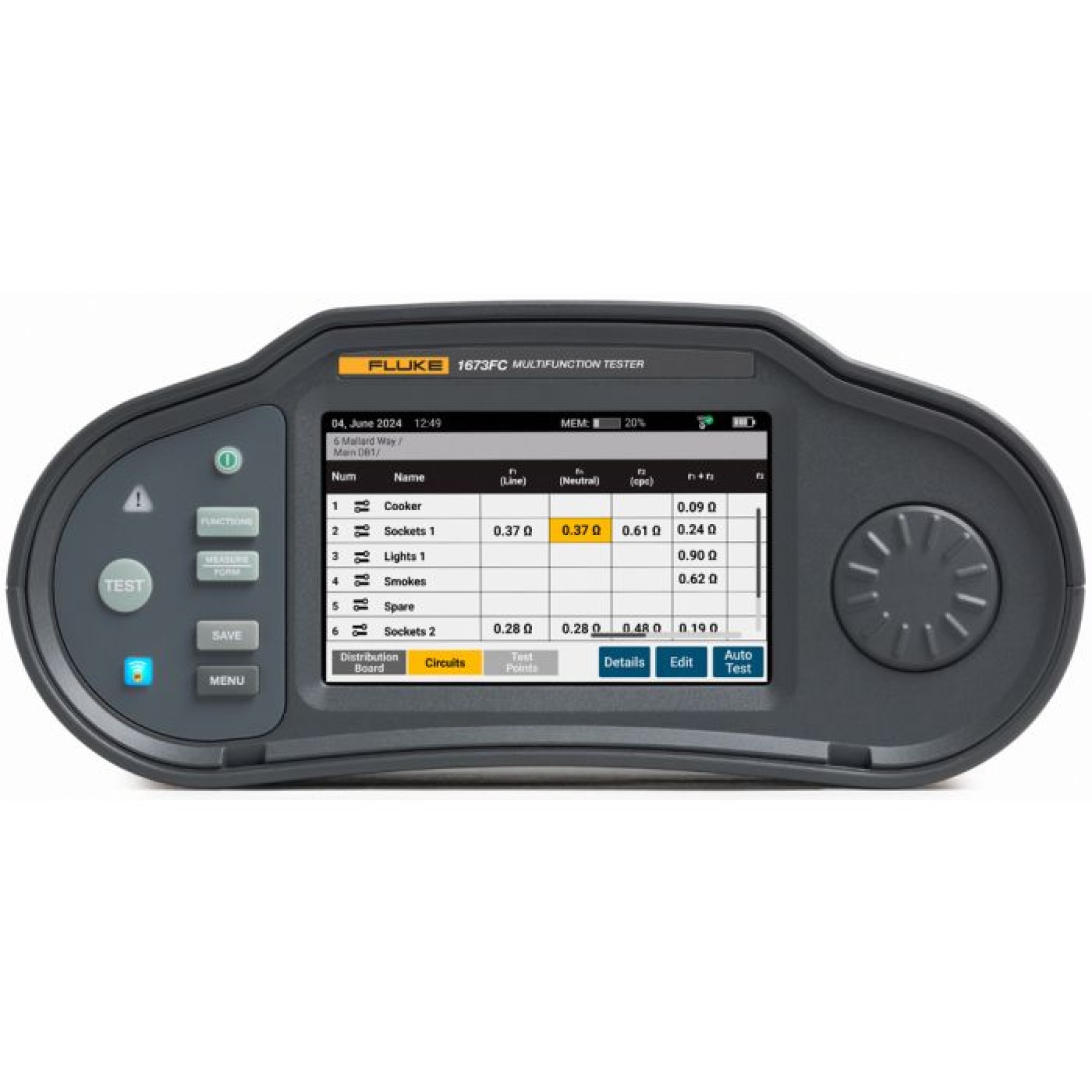

Fluke 1673FC Multifunction installation Tester 5580865

Fluke 1673FC Multifunction installation Tester 5580865

Product Code: FLU1673FC

Price

£1144.00 ex. VAT £1372.80 inc. VAT

In Stock

Add To Favourites
Detailed Description

A single solution for all your installation testing needs. Simplified setup, faster testing and easier reporting.

*Important Calibration Information:

This instrument comes complete with the manufacturer’s calibration certificate. Please be aware that these certificates are generic and may also be time-lapsed. If you would prefer a personalised full traceable calibration certificate applied to the equipment before dispatch, then please select this option from the drop-down menu above, an additional calibration charge will apply.

Fluke 1673FC Comes Supplied With:

Heavy duty mains cord with single input connector
Hard case
USB-C power adapter for charging
Remote control probe
Hanging strap
Zero adapter
Test leads and probes
Alligator clips
Li-Ion battery

Fluke 167x Quick Guide.pdf Fluke 167x Series Datasheet.pdf

In a hurry and just looking for the facts?

Please see our 1670 series selector at the foot of this page for all the specification comparisons at a glance.

The Fluke 1670 Series Multifunction Installation Testers will revolutionize the way you work. With an ergonomic design, seamless user interface, integrated data management capabilities, wireless connectivity (1673 FC and 1674 FC), and comprehensive reporting software, the 1670 Series sets the new standard for an integrated installation testing solution.
Reliable installation testing is essential for ensuring the safety, optimal functionality, and integrity of a facility’s electrical systems.
The 1670 Series' rugged design allows you to verify the safety of electrical installations in domestic, commercial, and industrial applications while meeting the requirements of IEC/HD 60364-6 and all relevant local installation test standards.
With the 1670 Series, you’ll be able to perform your required testing faster and reduce the time you spend on documentation, all while having the ultimate confidence in the data you’re collecting.

Intuitive user interface and setup

Streamlined user interface eliminates complex multi-level menus for easy setup with the full-colour touch screen, your smart device, or a PC, so you get the most out of your time on site.

Fast, accurate testing

Accelerate installation testing accuracy and efficiency with Auto Test and Automatic Measurement Validation functions.

Simplified reporting and results

Simplify report generation with automatic report population, Fluke Connect integration, and one-touch reporting with Fluke TruTest™ software.

Simplified User Interface and Testing Setup

The 1670 Series takes data management to the next level streamlining test set-up and preparation with an advanced bidirectional user interface. When setting up your project, the hierarchical tree topology for clients, sites, distribution boards, circuits, and test points can be easily customized using the high-resolution colour touchscreen, a smart device, or a PC.
Edit, add, delete, or modify information directly on the tool as you test to ensure accurate data, or transfer updates to your tester via the Fluke Connect™ mobile app or TruTest™ desktop software. Easy-to-read test tables help you quickly see that you are capturing the right measurement data at the right test point, every time. Now you can spend less time setting up your tester and organising data, giving you more time to perform valuable testing.

Perform All Required Tests up to 30% Faster

Installation testing can be a time-consuming process. It often requires repetitive, manual test setups that can be frustrating and introduce the opportunity for errors. The Fluke 1670 Series leverages a unique Auto Test function (1673 FC / 1674 FC) that enables you to run through an entire installation test sequence at the touch of a button.
An integrated help function provides a visual connection guide to help ensure measurement success. Automatic measurement validation, with user-defined limit warnings, compares test results to the relevant standards and provides you with an immediate visual pass/fail indication to quickly identify potential issues. Eliminating manual testing and automating measurement validation means you can perform your tests up to 30% faster than manual testing, giving you more time to focus on other critical tasks and increasing your productivity.

Key Features:

Reduce Documentation and Reporting Time up to 50%

The Fluke 1670 Series Multifunction Installation Testers help
you reduce documentation time by up to 50%. Link test results
to the circuit or point under test, reducing manual data entry
and recordkeeping. You can also preview inspection results in
the field via the tester, a smart device, or PC, and Fluke Connect
compatibility making it easy to store, manage, and share your
data from the field. Fluke TruTest Software lets you generate
inspection certificates on site with just a few simple steps,
so you can finalise and invoice your inspection at the time of
service. The Fluke Connect mobile app enables you to document
and input all relevant photos and inspection notes, so you can
complete your work on site, eliminating extra work at the office.
*50% faster reporting and documentation based on customer interviews.

Insulation PreTest™ Functionality (1674FC ONLY)

The Fluke 1674 FC includes a patented Insulation PreTest, so you
can better protect the installation and avoid costly mistakes. If
the tester detects that appliances are connected to the system
during the test, it will stop the insulation test and provide a
visual and audible warning. This helps eliminate accidental
damage to peripheral equipment and saves you both time and
money.

Optimized Software and Reporting

Fluke TruTest Software simplifies electrical system data
management and reporting, eliminating the hassle of traditional
data management with a single, integrated Fluke solution.
Proper data management and testing information is critical
for producing easy-to-understand reports for clients or your
management team. TruTest streamlines the process by allowing
you to create and transfer testing metadata between the
software and your installation tester using a USB-C interface
cable, or via the Fluke Connect mobile app, which helps you
ensure accurate results.
The user-friendly interface, intuitive workflow, and report
builder means that you can quickly format your measurement
data into printable test certificates and reports, complete with
your company logo and electronic signature. The live onscreen
dashboard allows you to see the status of all your clients instantly
and navigate to further levels of detail if desired.
Fluke TruTest Software allows you to create certificates that
are compliant with a growing list of regional reports, including
BS7671, DIN VDE 0100-600, ÖVE/ÖNORM E 8101, NIN/NIV,
NEN3140, and other European installation test standards. All
these reports are available at the touch of a button, and a
pre-configured international template ensures that no matter
your location, TruTest Software has you covered.

Fluke Connect:

Fluke Connect Compatibility

Enhance the functionality of the 1673 FC and 1674FC Installation
Testers with the Fluke Connect mobile app, eliminating tedious
data entry and optimizing data management with cloud
storage. The Fluke Connect mobile app wirelessly synchronizes
measurement data from your installation tester for later export
to TruTest desktop software, allowing for prompt and effective

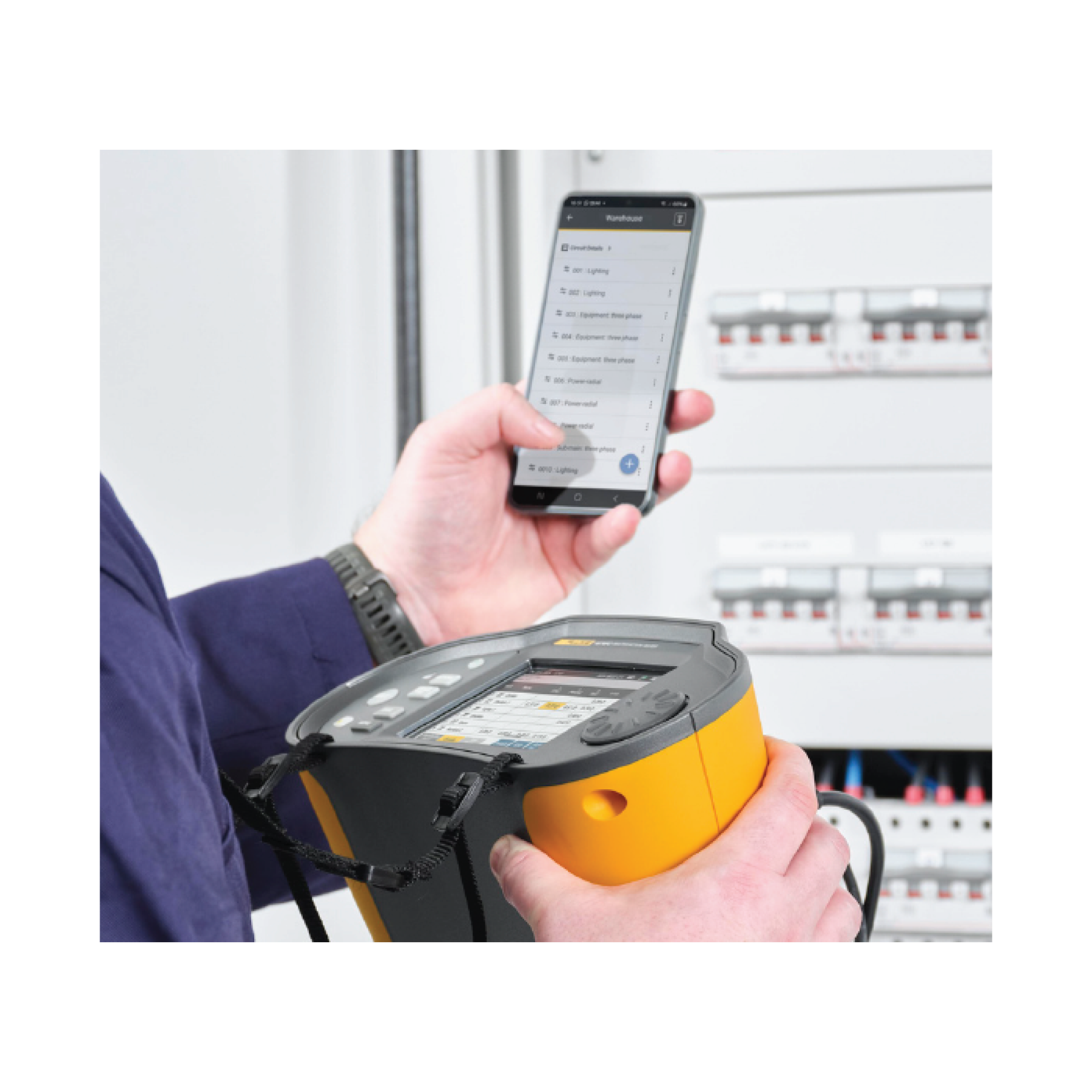

reporting even on location. Use the Fluke Connect app to create
projects and upload them to your 1673 FC and 1674 FC for
streamlined data management. Construct distribution boards
and circuits to send to your tester, using this data to guide your
testing regime. With the Fluke Connect app, you can also take
photos with your smart device and assign them, along with
notes, to specific test points or assets, creating detailed visual
inspection reports.
With the powerful Fluke Connect ecosystem of test tools, you’ll
be able to take your troubleshooting and reporting to the
next level. Connect additional test tools, like the Fluke 369 FC
Leakage Current Clamp or the Fluke 1630-2 FC Earth Ground
Clamp, to synchronize data between auxiliary devices and test
points, providing your clients with a clearer picture of overall
facility health.

Additional Capabilities:

• Field updatable — you can apply any changes to regulations or enhancements to the tester in the field.
• Compact and lightweight (less than 1.6 kg), with a padded neck strap to free your hands.
• Full-color touch screen and tactile rotary knob for fast navigation, with no complex multi-level menus.
• Rechargeable 2,500 mAh Li-ion battery to cover a full day of testing.
• Standard USB-C charging Port with fast charging support for convenient on-the-go charging.
• Newly designed professional hard case for transporting and protecting your installation tester and accessories.
• Additional high current loop mode for faster measurements than loop tests with non-trip mode for RCD protected circuits.
• Voltage drop measurement function.
• Z Max memory for loop tests to support easy evaluation of the highest loop test value.

• Unique zero adapter for fast, reliable, and accurate test lead and mains cord compensation.
• Simultaneous readings of voltage measurements between L-N, L-PE, and N-PE using the mains cord. No need to change measurement connections.
• RCD trip current and trip time measurement in parallel (RCD type AC, A, B, F and GFCI).
• PEFC or PSC and loop impedance measurement in parallel, displays them together on the dual display.
• Ring testing lets you select the required input sockets without exchanging test leads.
• Continuity test with low test current (10 mA) to measure motor windings.
• Earth Volt Touchpad detects raised earth voltages >50 V, indicating potentially dangerous situations.

Which Fluke 1670 series tester is right for me?

Model	1662	1663FC	1664FC	1672	1673FC	1674FC
New 167x series features
Full-colour touch-screen	-	-	-	•	•	•
Li-ion battery	-	-	-	•	•	•
USB-C port supports charging & data transfer	-	-	-	•	•	•
Digital rotary dial supports new feature additions	-	-	-	•	•	•
Form capture	-	-	-	•	•	•
Project setup	-	-	-	•	•	•
Field updatable	-	-	-	•	•	•
Bi-directional data	-	-	-	•	•	•
660v maximum voltage, 600v operation	-	-	-	•	•	•
Pass-Fail limits	-	-	-	•	•	•
On-screen help	-	-	-	•	•	•
Voltage drop measurement	-	-	-	•	•	•
Insulation monitoring device (IMD) test	-	-	-	-	-	•
Surge protection device (SPD) test	-	-	-	-	-	•
Save results from other Fluke Connect tools	-	-	-	-	•	•
User-programmable auto-test sequence	-	-	-	-	-	•
Shared features between 166x and 176x
Wiring polarity checker detects broken PE & N wires	•	•	•	•	•	•
Insulation resistance	•	•	•	•	•	•
Continuity and resistance	•	•	•	•	•	•
Measure motor windings with continuity test (@10mA)	•	•	•	•	•	•
Loop and impedance	•	•	•	•	•	•
Prospective earth fault current (PEFC/IK)	•	•	•	•	•	•
Prospective short-circuit current (PSC/IK)	•	•	•	•	•	•
RCD trip time / RCD trip current (ramp test)	•	•	•	•	•	•
Measures trip time and current for RCD type AC, A, and F in one test	•	•	•	•	•	•
RCD variable test current	•	•	•	•	•	•
Automatic RCD test sequence	•	•	•	•	•	•
Phase sequence test	•	•	•	•	•	•
Voltage AC, DC and frequency		•	•	•	•	•
Insulation at L-N, L-PE, N-PE inputs	250v, 500v, 1000v	50v, 100v, 250v, 500v, 1000v	250v, 500v, 1000v	250v, 500v, 1000v	250v, 500v, 1000v	50v, 100v, 250v, 500v, 1000v
Continuity at L-N, L-PE, N-PE inputs	-	•	•	•	•	•
EV test 6mA DC (RCD A/EV, RCD B/Mi, RCD-DD)	-	•	•	-	•	•
Earth resistance	-	•	•	-	•	•
Standard auto-test sequence	-	-	•	-	•	•
Insulation PreTest™ safety function	-	-	•	-		•
Loop and line impedance – mΩ resolution	-	-	•	-		•
Auto pass/fail results	-	-	-	•	•	•
Fluke Connect™ App compatibility	-	•	•	-	•	•
Fluke Cloud™ storage	-	•	•	-	•	•
On/Off switchable Auto-start for RCD and loop test	•	•	•	•	•	•
USB-C / BLE	IR-USB	IR-USB/BLE	IR-USB/BLE	USB-C	USB/BLE	USB/BLE
Memory	•	•	•	•	•	•
Z Max memory	-	•	•	-	•	•

Fluke Connect

Preventive Maintenance Simplified

Save time and improve the reliability of your maintenance data by
wirelessly syncing measurements using the Fluke Connect system.
• Eliminate data-entry errors by saving measurements directly from the tool and associating them with the work order, report or asset record.

• Maximize uptime and make confident maintenance decisions with data you can trust and trace.

• Move away from clipboards, notebooks and multiple spreadsheets with a wireless one-step measurement transfer.

• Access baseline, historical and current measurements by asset.
• Share your measurement data using ShareLive™ video calls and emails.

Visit the Fluke website to learn more about the
Fluke Connect system

Reduce unplanned expenses and get the most out of your tools with Fluke Premium Care

When you invest in the best equipment in the industry, you want your money to go as far as possible.
Fluke Premium Care provides coverage above and beyond your tool’s original product warranty, so you don’t need to worry about unexpected downtime caused by damaged test equipment, accessories, or tools in need of calibration or repair. Fluke Premium Care Standard is available with one-year or three-year plan options so you can choose the plan that is right for you.

	Standard Warranty	Premium Care Standard
Repair manufacturing defects	•	•
Accidental damage and repair		•
Replacement of damaged accessories		•
Annual calibration or performance check		•
Expedited calibration and repair		•
Priority tech support		•
Software updates		•
Expedited shipping		•

Learn more about Fluke Premium Care support website.
