Fluke 718Ex Intrinsically Safe Pressure Calibrator

Fluke 718Ex Intrinsically Safe Pressure Calibrator

Product Code: FLU718EX300G

Price
£3899.00 ex. VAT £4678.80 inc. VAT

Available In 3-7 Days


Add To Favourites
Detailed Description

Key Features:

  • ATEX II  1G Ex ia IIC T4 Compliant.
  • Built-in pressure / vacuum hand pump, with fine adjust vernier and bleed valve.
  • 30, 100, and 300 psi ranges (2, 7, and 20 bar)
  • Pressure measurement to 0.05% of full span, using an internal pressure sensor.

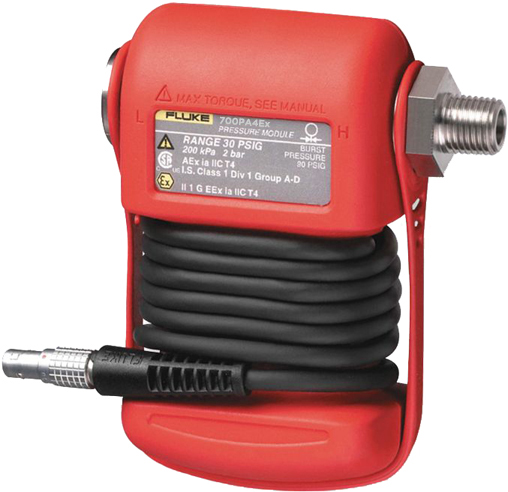

  • Pressure measurement to 200 bar using any of eight intrinsically safe Fluke 700PEx Pressure Modules.
  • Wide range of selectable measurement units for pressure.
  • Current measurement with 0.02% accuracy and 0.001 mA resolution.
  • Pressure switch test function.
  • Min-Max Hold functions.
  • Compact size and weight.
  • Simple, push-button user interface.
  • Rugged and reliable, ideal for field use.

*Important Calibration Information:
This instrument comes with a ‘manufacturer's certificate of conformity’. It is important to understand that this does NOT constitute a ‘traceable calibration certificate’. A certificate of conformity merely states that the equipment has been designed and produced to meet the requirements of its intended application.
Where calibration of an instrument is possible, we will offer this as a separately purchasable item and may be selected from the drop-down box above. You will be sent a full traceable calibration certificate produced in our laboratory and applied with your details as required.

Available in 30G, 100G, and 300G Pressure Ratings

Potentially explosive atmospheres can be found in a variety of manufacturing environments from chemical or pharmaceutical processing, to oil refineries—or any environment where flammable material (gas or dust/particulates) are present. Fluke’s intrinsically safe test tools can be used to help you perform maintenance and calibration tasks in potentially explosive and hazardous classified areas. Fluke offers the widest range of reliable, accurate and intrinsically safe test tools. Including true-rms multimeters, infrared thermometers, process calibrators, pressure calibrators, loop calibrators and precision pressure test gauges.

The Fluke 718EX 300 Intrinsically Safe Pressure Calibrator measures pressure via a 1/8-Inch NPT pressure fitting and an internal pressure sensor or via Fluke 700PEX Series Pressure Modules. The calibrator simultaneously displays pressure and current measurements, performs switch testing and measures current up to 24 mA.

The calibrator's unit button selects a different pressure unit. All units are available when the pressure sensor input is used. The damp button turns pressure reading damping on and off. With damping on, the calibrator averages several measurements before displaying a reading. The Calibrator automatically turns off after 30 minutes of inactivity.

This equipment is specified for use in measurement category I (CAT I) pollution Degree 2 environments and should not be used in CAT II, CAT III, or CAT IV environments.-voltage transients should not exceed 300-volts for the CAT I applications where this product is used. Do not use in a damp or wet environment.

Fluke 718Ex Comes Supplied With:

  • Holster
  • 9-volt Alkaline Battery
  • Set of TL75 Test Leads
  • Set of AC72 Alligator Clips
  • Control Drawing and CD-Rom

 Fluke 718Ex is Available in the Folowing Formats:

718 Ex 30G -12 PSI to 30 PSI (-82.7 kPa to 207kPa) 0.001 PSI (0.01 kPa) 0.05% FS
718 Ex 100G -12 PSI to 100 PSI (-82.7 kPa to 690 kPa) 0.01 PSI (0.01 kPa) 0.05% FS
718 Ex 300G -12 PSI to 300 PSI (-82.7 kPa to 2068 kPa) 0.01 PSI (0.01 kPa) 0.05% FS



About Instrinsically Safe products:

Products that appear on this website that are listed as or relate to a classification of intrinsic safety are titled and described according to our best understanding and/or interpretation of the complex and sometimes changing criteria governing such classification as set out by the Health and Safety Executive.

Please note that due to the volatile nature of the intended use of products in this category,  neither UK Test Instruments or Instrument Sales and Service can be held responsible for any incident that arises from the purchase or use of any product described within this web site. For more information please visit the health and Safety Executive website with specific regard to Hazardous Area Classification and Control of Ignition Sources.

Fluke 718Ex Intrinsically Safe Pressure Calibrator
Measurement Accuracy
Pressure
Fluke 718Ex 30G
Range:  -830 mbar to 2 bar (internal sensor)
   Over pressure: 3x FS
Resolution:  0.0001 bar
Accuracy:  0.05% FS
Functions:  Zero, Min, Max, Hold, Damp
   Note: for use with non-corrosive gasses
Fluke 718Ex 100G
Range:  -830 mbar to 7 bar (internal sensor)
   Over pressure: 2x FS
Resolution:  0.001 bar
Accuracy:  0.05% FS
Functions:  Zero, Min, Max, Hold, Damp
   Note: for use with non-corrosive gasses
Fluke 718Ex 300G
Range:  -830 mbar to 20 bar (internal sensor)
   Over pressure: 375 psi, 25 bar
Resolution:  0.0001 bar
Accuracy:  0.05% FS
Functions:  Zero, Min, Max, Hold, Damp
   Note: for use with non-corrosive gasses
Fluke 718Ex series
   via pressure module connector
Range:  29 pressure modules, 2.5 mbar to 700 bar
   Over pressure per pressure module specs
Resolution:  Per pressure module specs
Accuracy:  To 0.025% of full span, per pressure module specs
Functions:  Zero, Min, Max, Hold, Damp
   Note: media compatibility per pressure module specs
Source Pressure, built in pump
Range:  -820 mbar to full scale


Note:  Supported Pressure Units PSI, in. H2O (4 °C), in. H2O (20 °C), kPa, cm H2O (4 °C),
   cm H2O (20 °C), bar, mbar, kg/cm², mmHg, in Hg



Technical Data
Measure Accuracy:
Range:  0-24 mA
Resolution:  0.001 mA
Accuracy:  0.02% rdg ± 2 counts
Display
   LCD, 5 digit pressure and current simultaneous



Environmental Specifications
Operating Temperature
   -10ºC to 55ºC
Storage Temperature
   -40ºC to 60ºC
Humidity (Without Condensation)
   95% (10ºC to 30ºC)
   75% (30ºC to 40ºC)
   45% (40ºC to 50ºC)
   35% (50ºC to 55ºC)
Operating Altitude
   3,000 m max



Safety Specifications
Safety
   ATEX II  1G Ex ia IIC T4 compliant
   CSA Certification I.S. Class I,
   Div 1 Groups A-D , T4



Mechanical & General Specifications
Size
   216 mm L x 94 mm W x 66 mm H (with holster)
Weight
   Approx. 992 g (with holster)
Warranty
   Three years, one year for pump
Shock
   1 meter drop test
Vibration
   Random, 2 G, 5-500 Hz
Battery type
   One 9-volt alkaline battery ANSI/NEDA 1604A or IEC 6LR619V
   Battery life: 4 to 20 hours, depending on functions used
