ACT 612 6V 12V Battery Tester

The ACT 612 is a dual voltage intelligent battery tester, designed for 6V and 12V lead acid batteries from 1.2Ah to 100Ah, making it capable of testing 12V batteries up to 150Ah. It`s the only product of its kind to have an Ampere-hour (Ah) calibration control, enabling Ah readings to be adjusted to suit various battery technologies including standby SLA (AGM), cyclic GEL and car FLOODED (WET) batteries.

Test SLA, GEL & FLOODED
Simply turn the Ah Calibration Control to select either standby SLA, cyclic GEL or car FLOODED battery types before testing. The Calibration Control also allows you to calibrate the battery tester to non-standard battery types.

For 6V & 12V battery models
Test 6V battery models between 1.2Ah and 12Ah, and 12V battery models between 1.2Ah and 100Ah. With a wide Ah range, the ACT 612 is ideal for testing batteries used in many applications from security, and mobility to leisure.

Simple Operation

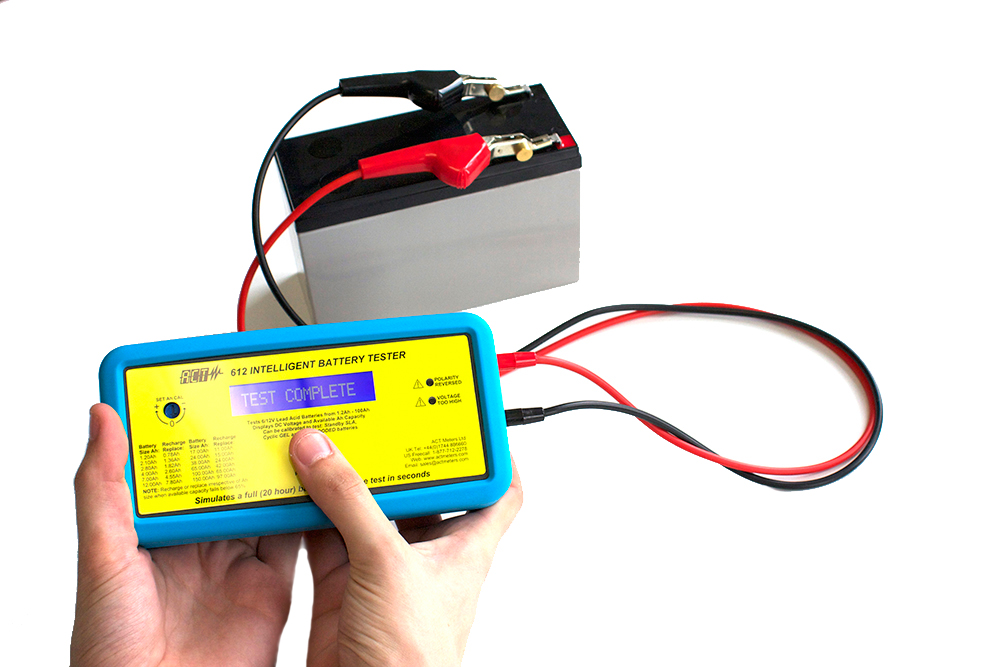

Connect the clamps to the battery, turn the Ah Calibration Control to the desired battery type under test, and press the ‘TEST’ button. It’s that easy. Results will be displayed within seconds.

DC Voltage and Ah Capacity Results

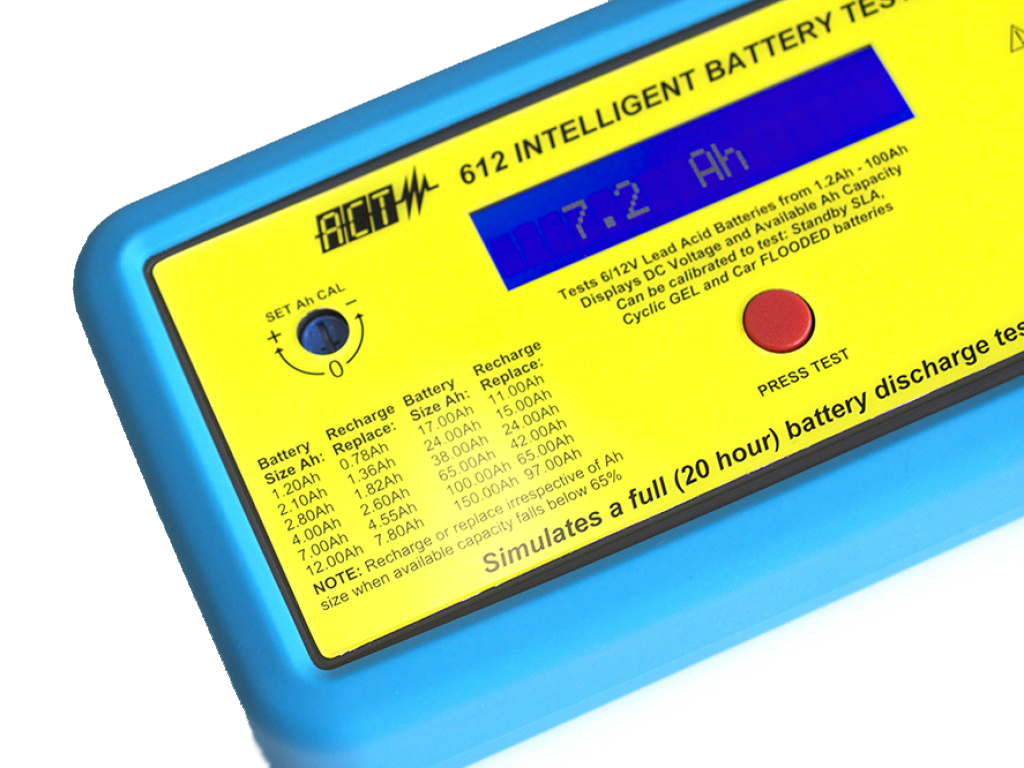

There are no confusing conversion rates or user interpretation needed when using the ACT 612. Two results are displayed – the battery’s DC voltage followed by the actual Ah capacity available.

When to Recharge or Replace
Battery manufacturers recommend recharging or replacing a battery when its rated Ah capacity falls below 65%. By giving a clear and accurate Ah reading, ACT 612 will help you identify replacements quickly and easily.

Advanced Pulse Load Technology
 ACT 612 uses advanced pulse load technology to analyse Ah capacity, based on the battery’s temperature and state of charge. This method is significantly more accurate than measuring voltage and internal resistance and does not deplete the battery, unlike a conventional load tester.

Reliable, Continuous Testing
Powered by the battery under test and with ultra-low heat generation.

Portable
Perfectly suited as a bench tester or out with the engineer.

Economical
Identify batteries that still have life remaining and reduce the amount discarded unnecessarily.

Profitable
Show the customer the result and increase your battery sales by recommending a new battery for their system.
