FLIR CM275 Thermal Imaging Clamp Meter
Product Code: FLICM275
In Stock
Add To Favourites
Detailed Description
Key Features:
- Thermal imaging allows you to quickly scan for overheating system components, then use the test functions to troubleshoot and diagnose the fault
- Scan entire targets for electrical issues with 160 × 120 thermal resolution
- Use advanced electrical features including VFD mode, true RMS, and LoZ
- Wirelessly connect to the FLIR InSITE professional workflow management tool to streamline inspections and simplify data collection, sharing, and reporting
- Store electrical measurements and thermal images internally, for later review
- Thermal imaging capability helps spot overheating components in circuitry
- Measure AC/DC current, AC/DC voltage, resistance and capacitance
*Important Calibration Information:
This instrument comes with a ‘manufacturer's certificate of conformity’. It is important to understand that this does NOT constitute a ‘traceable calibration certificate’. A certificate of conformity merely states that the equipment has been designed and produced to meet the requirements of its intended application.
Where calibration of an instrument is possible, we will offer this as a separately purchasable item and may be selected from the drop-down box above. You will be sent a full traceable calibration certificate produced in our laboratory and applied with your details as required.
The FLIR CM275 Thermal Imaging Clamp Meter combines accurate measurement of electrical parameters with FLIR’s state-of-the-art thermal imaging technology. It can measure AC/DC current up to 600A via its 35mm jaw whilst the meter can also perform contact measurement of voltage (1000V), resistance (6kΩ), and capacitance (1000µF). Other functions include diode testing and inrush current measurement for assessing the start-up phases of motors. VFD mode is perfect for motor drives and true RMS measurement makes AC parameters more accurate.
In addition to its advanced measurement functions, the FLIR CM275 has a 160 x 120 pixel thermal sensor which measures surface temperature from -10˚C to 150˚C with ±3˚C or 3% accuracy. The 150mK thermal sensitivity means that temperature differences of just 0.15˚C can be depicted on screen across a 50˚ x 38˚ field of view. A laser pointer helps the user direct the camera and there is the choice of iron, rainbow and greyscale palettes.
It is easy to select the function on the FLIR CM275 using the simple dial. Other buttons allow ranging, fine adjustments and different measuring modes such as min/max recording and data hold. Results and thermal images are shown on the 2.4” screen and both readings and images can be saved to clamp meter’s internal memory. Files can then be wirelessly transferred via Bluetooth® to the user’s smartphone using the FLIR Tools or FLIR InSite apps.
The practical design of the FLIR CM275 makes it suitable for working in tricky or cramped conditions. The integrated torch illuminates the area in dark cabinets and the slimline clamp jaws can fit into awkward cavities. It is drop tested to 2m and is safety rated as Cat III 1000V / Cat IV 600V. The clamp meter benefits from a ten-year manufacturer’s warranty.

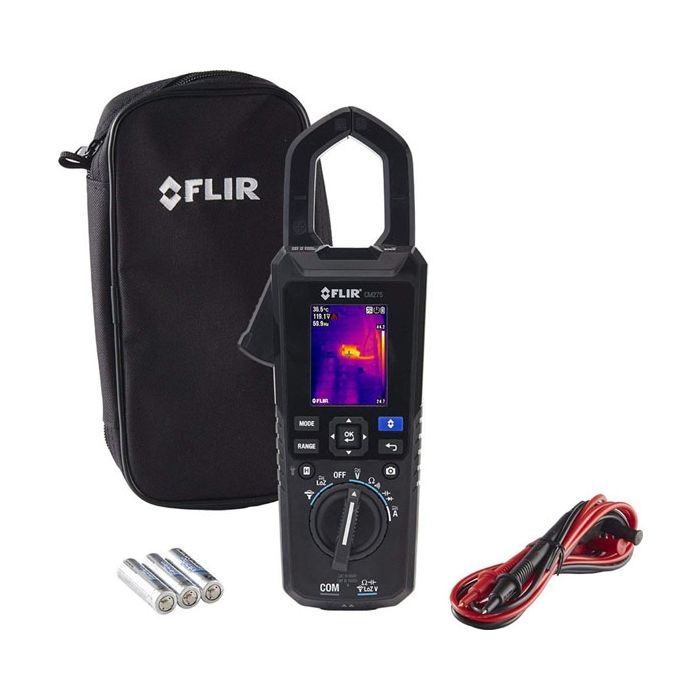

The CM275 Comes Supplied With:
- FLIR CM275 Thermal Imaging Clamp Meter
- 3 x AA batteries
- Premium Cat IV silicone test leads
- Quick start guide
- Instruction manual for FLIR CM275
FLIR Comparison Table
| CM275 | CM174 | CM74 | CM72 | |
| IGM Resolution | 19,200 Pixels | 4800 Pixels | N/A | N/A |
| Display Counts/Type | 6000/2.4" Colour TFT | 6000/2" Colour TFT | 6000/Backlit LCD | 6000/Backlit LCD |
| Jaw Opening | 1.38 in. | 1.38 in. | 1.38 in. | 1.38 in. |
| AC/DC Voltage | 1000 V | 1000 V | 1000 V | 600 V |
| AC/DC Current | 600 A | 600 A | 600 A | 600 A |
| VFD | Yes | Yes | Yes | N/A |
| LoZ | Yes | Yes | Yes | Yes |
| Resistance | 6.00kΩ | 6.00kΩ | 6.00kΩ | 6.00kΩ |
| Data Storage | 10 Files (40K Readings) , 100 Images |
N/A | N/A | N/A |
